Overview
Centralized Traffic Control (CTC) is a system which enables integrated monitoring and controlling from control center over vast areas in terms of train operation, track condition and operation of signal equipment.
CTC facilitates the controller to make a rapid, correct and overall decision to cope with any emergency as well as to manage train systems in an integrated and effective way.
Since the successful development of CTC in 2006, DAEATI has taken a leading role as a railway systems provider in domestic market, installing CTC at the core spots for the railroad network such as the Integrated Traffic Control Center (ITCC), the Back-up for ITCC
 Main Project
Name Summary Employer Duration
CTC Integration for Gyeongbu High Speed Line New installment of the Integrated Traffic Control Systems from KTX 1st Phase(Seoul-Dongdaegu) to KTX 2nd Phase(Dongdaegu-Busan) by redundancy system for ensuring prompt restoration from any disasters Korea Rail Network Authority 2009 ~ 2010
Installation the Back-up System of Integrated Traffic Control Establish the Reserved Integrated Traffic Control Center (Reserved ITCC) as an alternative to the Integrated Traffic Control Center (ITCC) in the case of any accidents such as earthquake, floods, and so forth with CTC Korean Railroad Corporation 2006~2011(in progress)
Installation of the CTC for the Integrated Traffic Control Center(ITCC) Installation CTC systems to integrate five-dispersed Regional Traffic Control Centers(TCC) throughout the country into one center for the effective management Korean Railroad Corporation 2002 ~ 2006

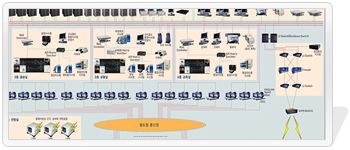

 Configuration of CTC  Main Function
- Monitoring and Controlling for Railroad Traffic
- Automatic Route Setting and Timetable Management
- Train Describer
- Education for the maintenance and management of the CTC
- GIS tracking for the disaster preparation
- Provide CTC installation information through the outside
   interface
